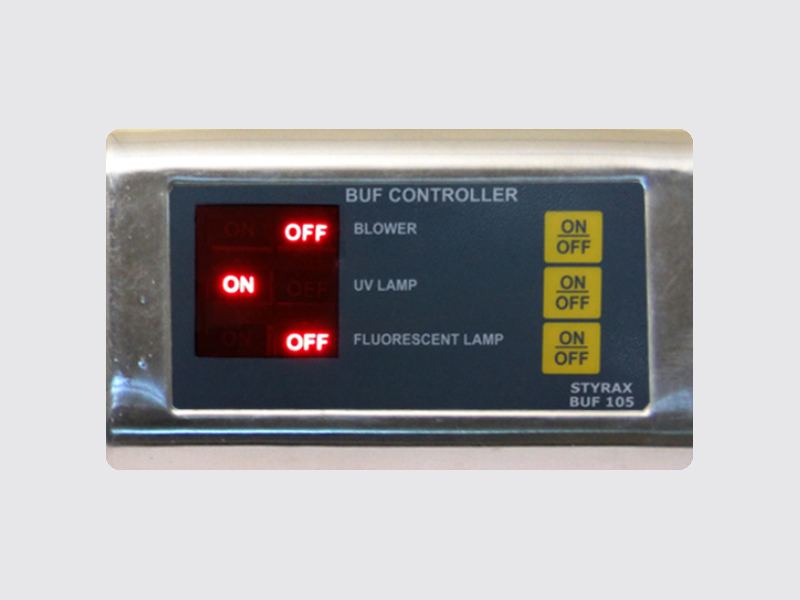

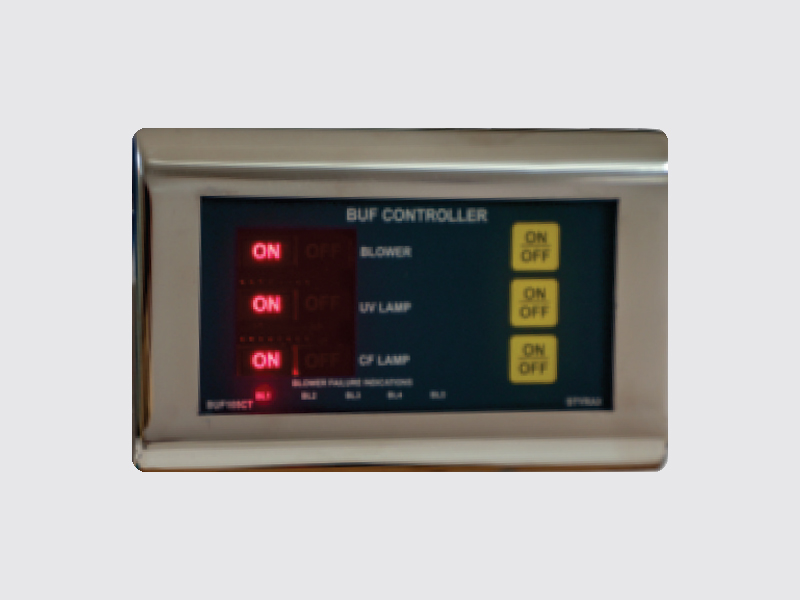

LAF/BUF Controller

Features:

• Advanced Micro controller based
• ON/OFF Message Display
• Relay O/P for Blower (up to 1 HP), UV Lamp & CF Lamp
• ON/OFF Massage status indication with high intensity Bar LEDs
• Status indication: ON, OFF-Blower, ON, OFF- UV Lamp & ON, OFF – CF Lamp

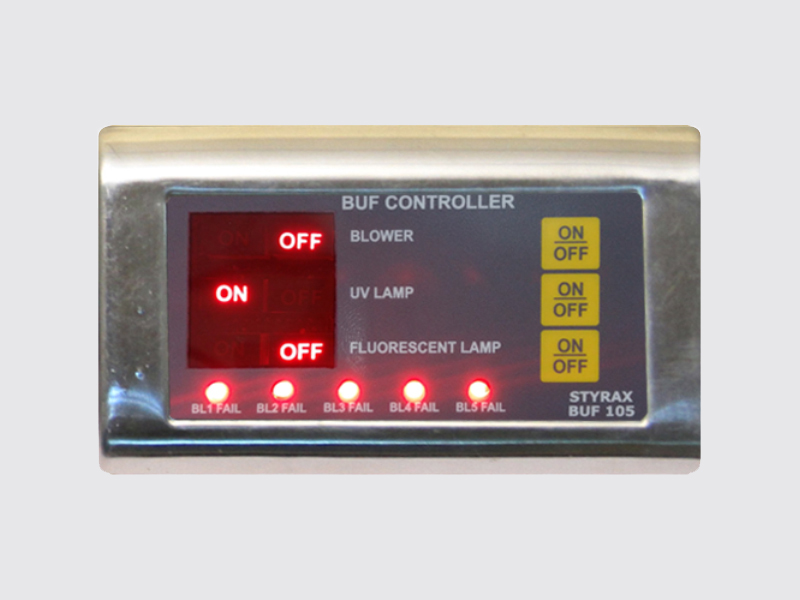

• Blower Failure Status Indications
• Soft touch Membrane / Capacitive Touch keypad
• Easy for Installation

Specifications:

DPM

• Keypad : 3 - Soft Touch Membrane Keypad or Capacitive Touch Keypad
• Display : 6 – 14 x7 Bar LED's Indicated ON/OFF status of Blower, UV & CF
• LED Indications : 5 3mm Red LED Indications for Blower failure Status
• Audible Indication : Buzzer
• Operating Voltage : 24VDC/12VDC
• Dimensions: : 150mm L x 90mm W x 20mm D
• Mounting : Flush Mounting

Controller

• Blower Relay O/P : 230V AC / 2 A (up to 1HP Blower can be connected).
• UV Lamp Relay O/P : 230V AC / 2 A.
• CF Lamp Relay O/P : 230V AC / 2 A.
• Enclosure : MS Powder Coated for Controller unit SS-304 face plate for DPM
• Mounting : Panel
• Power : 100 - 260V, AC 50 Hz
