Air Shower Interlocking System

Description :

The Air shower is a supporting device for the clean workshops and the assembly clean room, is used to blow the dusts attached to the surfaces of the people and objects entering the clean workshop, and also functions as an air brake to prevent non-purified air from entering the clean area.

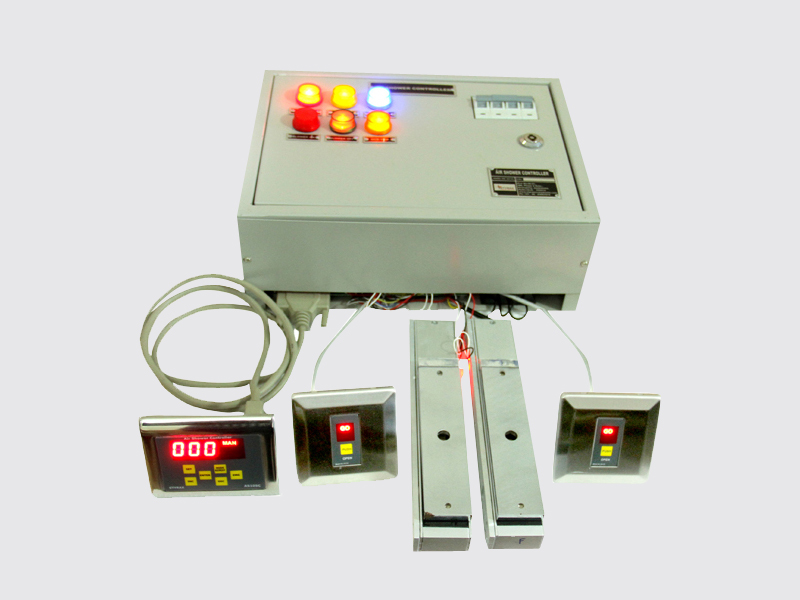

The Air Shower system controls the sequential locking and release of the doors, and controls the Blower. The two doors are interlocked such that two doors cannot be open at the same time, to prevent pressure losses and cross contamination.


Our Air Shower interlocking system achieve this by preventing simultaneous access of door by ensuring that when one door for a Air Shower interlocking system is open then other door is closed, before opening of door


  • When any one of the Door is opened the push button on the other doors will indicate “WAIT” & person access the door by pressing push button
  • All Doors are provided with EM Locks

Features :

  • Advanced Micro controller based.
  • Supports Maximum of 3 doors.
  • Supports Electromagnetic locks/Electric strikers.
  • Door status indication with high intensity Bar LEDs.
  • Status indication: GO, WAIT on push button station.

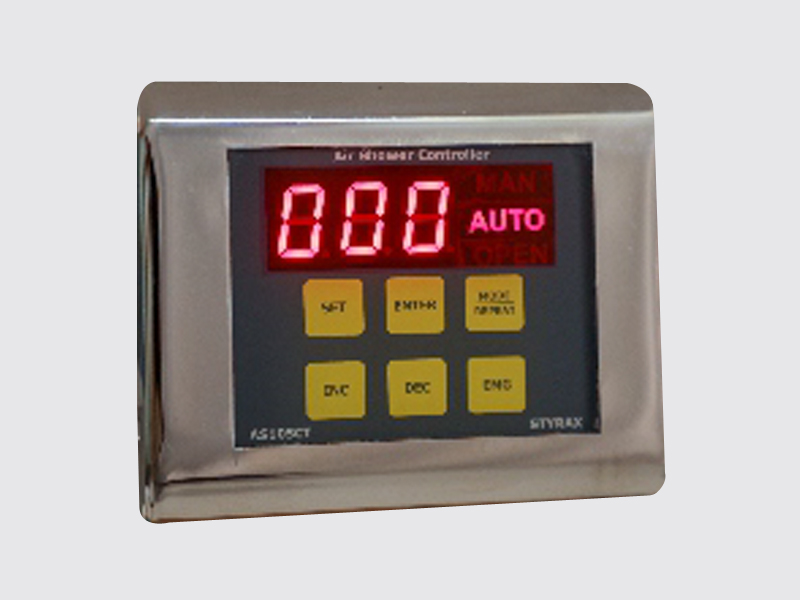

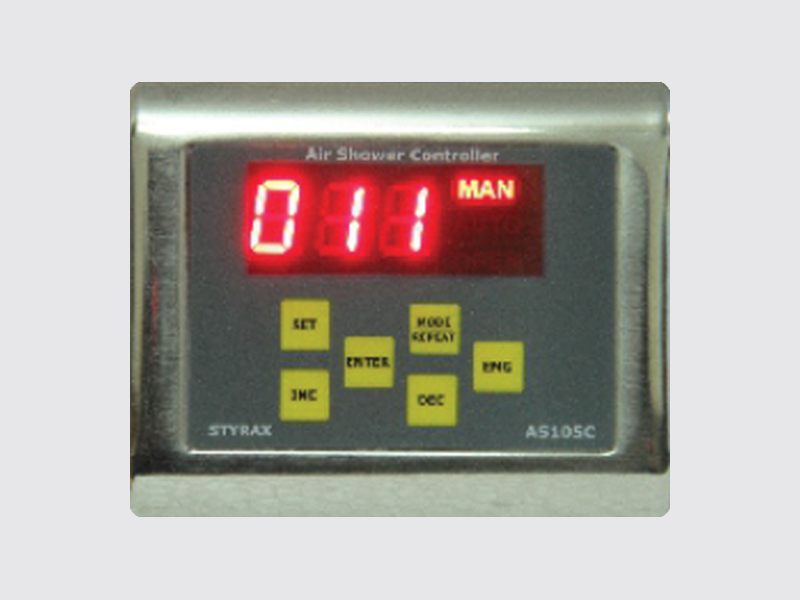

  • Digital Display with soft tactile keypad.
  • Status indication: OPEN (Exit door open).
  • Mode of operation: MAN, AUTO on digital display module.
  • User programmable Blower ON time variable from 0 – 255 Sec.
  • Buzzer output for exit door is open.

Specifications :

  • Mode of Operation: NC or NO.
  • Door delay time: pre programmed as per requirement.
  • Pushbutton Inputs based on Doors maximum 3 Doors.
  • Door Feedback Inputs based on Doors maximum 3 Doors.
  • Door Control Outputs based on Doors maximum 3 Doors.
  • LED Indications for push buttons: GO/WAIT.
  • Input Voltage: 24Watt at 80-280VAC, 50Hz.
  • Operating Voltage: 12V / 24V DC.
  • Dimensions for DPM: 110mm L x 90mm W x 20mm D.

Pushbutton :

ILS105P

Keypad Soft touch Tactile Membrane Key.
Status LED's WAIT Message for Door Open / Entry Prohibited.
GO Message for Door Close / Entry Permitted.
Audible Indication Buzzer
Life 100, 000 Cycles Min
Enclosure type North West SS face plate.
Mounting Flush mounting.
Dimension 90mm L x 90mm W x25MM D.

ILS1052P

Keypad Soft touch Tactile Membrane Key.
Status LED's WAIT Message for Door Open / Entry Prohibited.
GO Message for Door Close / Entry Permitted.
Audible Indication Buzzer
Digital Input (LED) 12V / 24V DC.
Life 100, 000 Cycles Min
Enclosure type North West SS face plate.
Mounting Flush mounting.
Dimension 85 x 40 x 25

ILS105N

Keypad No-Touch IR pushbutton.
Status LED's WAIT Message or RED LED for Door Open / Entry Prohibited.
GO Message or GREEN LED for Door Close / Entry. Permitted.
Audible Indication Buzzer
Digital Input (LED) 12V / 24V DC.
Life 100, 000 Cycles Min
Enclosure type SS face plate.
Mounting Flush mounting.
Dimension 70 x 110 x 30
Model No No. of Doors AS105D Type of Controller Dimensions Type of Pushbutton
ILS105P ILS1052P ILS105N
AS1052 2 AS1052C 265 x 280 x 130
AS1053 3 AS1053C 265 x 330 x 130
