GPS/Server Based - Wired Synchronized Digital Clocks:

Description :

STYRAX manufacturers’ digital synchronized master clock systems, and other LED clocks. All clocks can display the same, accurate, legal time. STYRAX commercial digital clocks are specifically designed for applications where precision and reliability are of utmost importance. These clocks may be used as accurate stand-alone time displays. They can also be synchronized so that all clocks display the same time. SDC105M clock synchronizes the Slave Clocks (i.e.SDC1051S, SDC1052S) every second within the RS485 network.

Applications:

  • HVAC (Heating, ventilation, Air conditioning, cooling).
  • Pharmacy industry.
  • Blood stations, pharmacies.
  • Horticultural and cultivation of plants

Applications:

The following are the main application areas where synchronized digital clocks play an important role.

  • Pharmaceutical industries
  • Process Industries
  • Warehouse
  • Railways
  • Mass Production Factories
  • Conference halls
  • Examination Halls
  • Colleges etc

Key Features:

  • Advanced Microcontroller Based Master clock
  • Reliable LED display
  • High readability
  • Synchronizes Slaves Every Second
  • Flicker-free Bright Seven Segment LED Display
  • User friendly programming modes
  • Lithium Battery ensures correct time after power failure.
  • Time Displays in 24 Hrs Format (HH:MM:SS)
  • Red filter Transparent overlay facilitates Wide Viewing Angle
  • Interface communication: RS485/RF

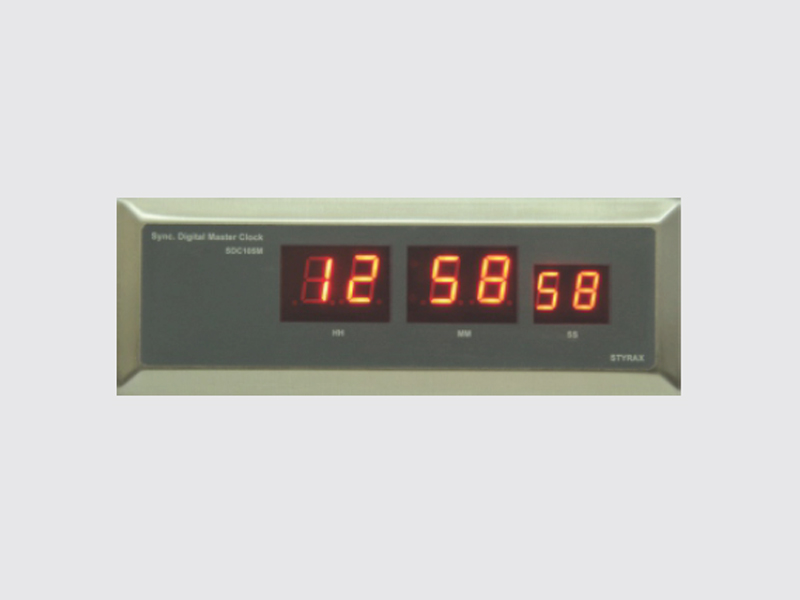

Master (SWDC105M):

6 digit 7 segment LED display
0.8” seven segment LED to display Hours and Minutes
0.5” seven segment LED to display Seconds
LED Color Red or Green.
Accuracy ±0.5 Seconds at 25°C.
Battery backup for RTC 3.6VDC Lithium-Ion.
Communication RS-485.
Time format 24Hrs
No. of Slave 32 without repeater
Operating Voltage 230VAC 25Watt

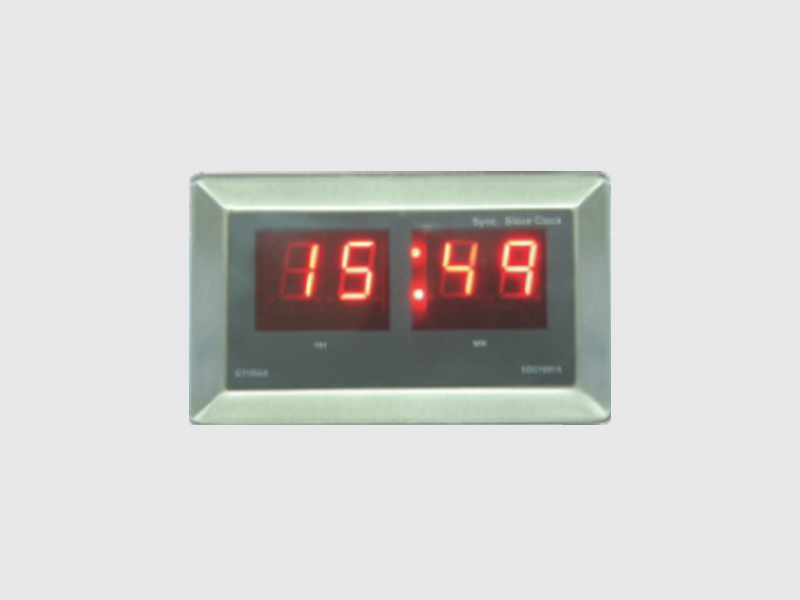

Synchronized Slave Clocks:

4 digit 7 segment 0.8”/2”/4” LED display to display Hours and Minutes
6 digit 7 segment 0.8”/2”/4” LED display to display Hours, Minutes and Seconds.
Accuracy ±2minutes per year at 25°C
Battery backup for RTC 3.6VDC Lithium-Ion
Communication RS- 485
Operating Voltage 230VAC
LED Color Red or Green
Time format 24 Hrs

Stop Watch Timer:

4 digit 7 segment 0.8" LED display to display Hours and Minutes.
2 digit 7 segment 0.56" LED display to display Seconds
Soft touch key pad to Start/Stop/Reset stop watch timer
User can change over from Stop Watch to Clock mode
Battery backup for RTC 3.6VDC Lithium-Ion.
Communication RS- 485.
Operating Voltage 230VAC
LED Color Red or Green
Time format 24 Hrs

Gang men Alarm System:

4 digit 7 segment 2” LED display to display Hours and Minutes
Accuracy ±2minutes per year at 25°C.
Battery backup for RTC 3.6VDC Lithium-Ion.
Communication RS- 485.
Operating Voltage 230VAC
Time format 24 Hrs
Output PFC output to connect external Siren

GPS Server Based - Wireless Synchronized Digital Clocks:

Master Clock:

Transmission frequency 433.5MHz
Transmission time 2 milliseconds.
GPS Module GPS-634R
Antenna Telescopic
Antenna Cable RG217 10 meters
16x2 Liquid Crystal Display to display RTC at master clock.
Updates network every minute (New joining nodes) within the radius
Operating voltage is 230VAC

Synchronized Wireless Slave Clocks

4 digit 7 segment 2”/4” LED display to display Hours and Minutes.
LED Color Red or Green
Operating Frequency 433.5MHz
RF Sensibility -106dBm
Modulation mode ASK
Time format 24Hrs.
Operating Voltage 230VAC.

Synchronized Wireless Slave Clocks:

Model No Hours Minutes Seconds Wired Wireless GPS Server Dimensions Mounting FLP/NFLP
SWDC105M 0.8" 0.8" 0.56"     120 X 265 X 52 Wall NFLP
SWDC105S 0.8" 0.8" 0.56"     120 X 265 X 52 Wall NFLP
SDC105M 0.8" 0.8" 0.56"       90 X 250 X 35 Flush NFLP
SDC1054 4.0" 4.0" -       180 X 490 X 35 Wall NFLP
SDC1054S 4.0" 4.0" 2.0"       180 X 600 X 35 Wall NFLP
SDC1052 2.0" 2.0" -       390 X 120 X 35 Flush NFLP
SDC1052WM 2.0" 2.0"         330 x 148 X 56 Wall NFLP
SDC1052S 2.0" 2.0" 0.8"       450 X 120 X 35 Flush NFLP
SDC1051A 0.8" 0.8" 0.56"       90 X 250 X 35 Flush NFLP
STP1051A 0.8" 0.8" 0.56"       90 X 250 X 35 Flush NFLP
SDC1051S 0.8" 0.8" -       90 X 150 X 35 Flush NFLP
SWDC1052 2.0" 2.0" -       138 X 245 X 52 Wall NFLP
SWDC1052F 2.0" 2.0" -       240 X 345 X 105 Wall FLP
SWDC1054 2.0" 2.0" -       180 X 490 X 52 Wall NFLP
SWDC1054F 4.0" 4.0" -       330 X 600 X 130 Wall FLP
SDC105MGS 16 X 2 ALPHA NUMERIC LCD   118 X 265 X 52 Surface Mount NFLP
SDC105G 2.0" 2.0" -       330 X 148 X 56 Wall NFLP
